Picking a furnace filter is a constant tug-of-war: you want clean air, but a filter that’s too dense will starve your HVAC system of airflow, making it work harder, run longer, and drive up energy bills. A filter that freely passes air but captures nothing leaves your home coated in dust. The solution isn’t a compromise—it’s choosing a filter engineered to maximize particle capture without creating a measurable pressure drop across your blower.
I’m Mo Mahin — the founder and writer behind Furric. I’ve spent years analyzing HVAC specification sheets, comparing MERV and MPR ratings against static pressure data, and cross-referencing thousands of owner reports to find the filters that actually deliver on their airflow promises without sacrificing filtration.
After reviewing dozens of models, I’ve narrowed down the top contenders for the best furnace filter for air flow to five options that balance open pleat design with effective particle capture.
How To Choose The Best Furnace Filter For Air Flow
The single most important concept when shopping for a furnace filter that prioritizes airflow is understanding the relationship between MERV rating and media density. A higher MERV rating captures smaller particles but uses denser fibers that create more resistance, forcing your blower to work harder and potentially reducing total airflow. The key is to match the filter’s resistance to your system’s blower capacity.
MERV Rating: The Airflow Tradeoff
MERV 8 is widely considered the performance ceiling for standard residential HVAC systems without commercial-grade blowers. It captures 70-85% of particles down to 3 microns—enough to trap pollen, dust mites, and mold spores—while maintaining a static pressure drop low enough that most 1/3 to 1/2 HP blower motors can overcome it. Moving to MERV 11 or 13 doubles the resistance and can reduce airflow by 15-25%, which risks frozen coils in summer and overheating in winter.
Pleat Count and Media Spacing
Not all pleated filters are created equal. A filter with fewer pleats per foot (typically 10-12) has wider spacing between folds, which allows air to pass through with less friction. A higher pleat count (14-16 per foot) increases surface area for particle capture but also creates more turbulence and resistance. For dedicated airflow optimization, look for filters marketed with “high airflow” or “low resistance” pleat geometry—they use shallower pleats or spaced-out media to maintain velocity.
Actual vs. Nominal Size and Frame Construction
A filter that is even a quarter-inch smaller than your filter slot will let unfiltered air bypass the media entirely, rendering the MERV rating useless and introducing dust directly into the blower. Conversely, a filter that’s slightly oversized and must be forced in can bow the frame, creating gaps on the sides. Always measure your existing filter slot with a tape measure and compare to the filter’s actual dimensions printed on the box, not the nominal size (nominal 20x20x1 typically measures 19.75 x 19.75 x 0.75).
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Nexiview 20x25x1 MERV 8 | Washable | Zero replacement cost | Aluminum frame, washable | Amazon |
| Filtrete 14x25x1 MPR 700 | Electrostatic | Balanced capture & flow | MPR 700 / MERV 8 | Amazon |
| Simply 20x20x1 MERV 8 6-Pack | Value Multi-Pack | High-change frequency | 19.75″ actual size | Amazon |
| Filtrete 16x20x1 MERV 5 6-Pack | Basic Defense | Minimum airflow restriction | MERV 5 / MPR 300 | Amazon |
| Filterbuy 16x20x1 MERV 8 4-Pack | Reinforced Build | Durable, no-warp frame | Dual wire backing | Amazon |
In‑Depth Reviews
1. Nexiview 20x25x1 MERV 8 Washable Filter
The Nexiview takes the top spot because it eliminates the single biggest recurring cost of furnace filters—replacement. Its aluminum frame is rigid enough to hold shape under the suction of a standard blower without deforming, unlike the flimsy cardboard frames found on many disposable filters. The MERV 8 electrostatic pleated media captures up to 92% of pollen and pet hair, and owners report it rinses clean in under two minutes with a garden hose and mild detergent, restoring airflow to original levels.
Where this filter truly shines for airflow is the open pleat geometry. The pleats are spaced wide enough to maintain velocity through the media, even as electrostatic charge pulls particles onto the fibers. Users specifically note “strong airflow” and “no noise” from the filter, indicating minimal turbulence. The tradeoff is that its actual dimensions run slightly smaller than nominal, so the built-in alignment tabs are essential for securing it without air bypass.
For a household that wants to buy one filter and never think about monthly replacement logistics again, the Nexiview wins on total cost of ownership and consistent airflow. The lifetime customer service and 12-month warranty remove the risk of trying a washable filter for the first time.
Why we love it
- Washable construction eliminates recurring purchase cost
- Rigid aluminum frame resists warping under blower suction
- Electrostatic media maintains high particle capture without dense fiber packing
Good to know
- Actual size slightly smaller than nominal—use alignment tabs to prevent bypass
- Washable filters must be fully air-dried before reinsertion to prevent mold growth
2. Filtrete 14x25x1 MPR 700 MERV 8 2-Pack
Filtrete’s 3-in-1 electrostatic media from 3M is the benchmark for consistent performance in the residential filter space. The MPR 700 rating (which correlates to MERV 8) is specifically tuned to capture particles like pollen, pet dander, lint, and dust without choking the system. Multiple owners confirm the filter delivers “good flow and decent filtration for larger particles without overworking the furnace,” which is the exact balancing act required for airflow optimization.
The actual dimensions measure 13.81 x 24.81 x 0.81 inches, so you’ll need to confirm your slot fits that slightly undersized profile. The 0.75-inch thickness is typical for a 1-inch nominal filter and leaves enough clearance for the media to expand slightly under airflow without bowing. The polypropylene media is lightweight but durable enough to hold its pleated structure for the full 90-day recommended change interval.
For homeowners who prefer the simplicity of disposable filters and want the most trusted brand in HVAC filtration, this Filtrete pack delivers reliable, repeatable performance. The Smart App integration for change reminders is a useful touch for households that struggle to remember replacement schedules.
Why we love it
- Proprietary 3-in-1 electrostatic media balances capture and airflow
- Brand trust backed by 3M engineering and broad consumer testing
- Smart App reminder integration prevents overextended use
Good to know
- Actual size undersized by roughly 0.2 inches per dimension—check your slot
- Polypropylene frame is less rigid than aluminum or reinforced beverage board

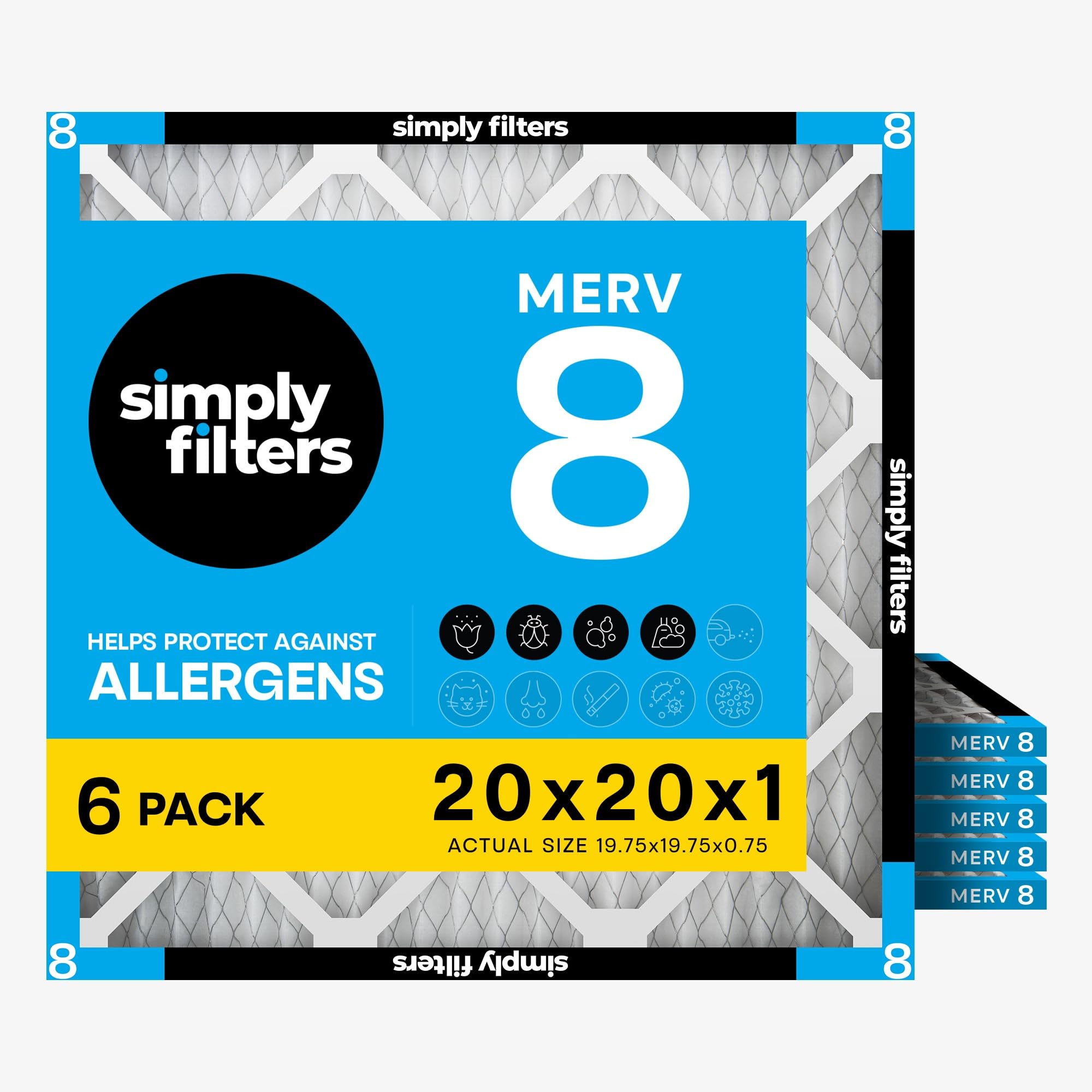

3. Simply 20x20x1 MERV 8 6-Pack Filters
The Simply MERV 8 6-pack is built around a higher pleat count than most retail filters, which increases surface area for particle capture but also raises the potential for airflow restriction. However, owners consistently report “they do not restrict the airflow too much,” suggesting the pleat spacing is optimized to keep pressure drop low. The actual dimensions of 19.75 x 19.75 x 0.75 inches create a snug fit in most 20×20 slots, minimizing bypass and ensuring all air passes through the media.
The construction uses a 24-point beverage board frame with hot-rolled steel wire mesh backing—sturdier than standard cardboard frames. This prevents the filter from bowing inward under suction, which is a common failure mode that creates gaps on the sides and dirties the blower wheel. The 6-pack quantity makes this ideal for homeowners who prefer changing filters every 30-45 days for allergy seasons without feeling wasteful.
With 100% American components including recycled materials, this is a solid choice for environmentally conscious buyers who don’t want to sacrifice filter performance. The MERV 8 rating captures 90% of airborne particles including mold spores and pollen while maintaining the airflow needed for efficient system operation.
Why we love it
- High pleat count increases surface area without choking airflow
- Reinforced beverage board frame with steel wire resists warping
- 6-pack allows frequent changes without breaking per-filter cost
Good to know
- Cardboard frame is less durable than aluminum in high-humidity environments
- May run slightly snug in slots that measure exactly 20 inches wide
4. Filtrete 16x20x1 MERV 5 MPR 300 6-Pack
When absolute maximum airflow is the only priority—perhaps for an older system with a weak blower motor or for a shop where dust capture is secondary—a MERV 5 filter is the correct choice. The MPR 300 rating indicates this Filtrete’s electrostatic media is intentionally sparse, designed to trap only larger particles like lint and dust while offering the lowest possible resistance to air movement through the system.
The actual dimensions measure 15.69 x 19.69 x 0.81 inches, so expect a slightly smaller profile than the nominal size. Owners of mobile home Coleman furnaces specifically note these filters “slide in the tracks” with the correct fit and require no force. The 6-pack format is particularly useful for systems that need filter changes every 30 days due to high dust load or seasonal operation.
Be aware that MERV 5 offers minimal protection against pollen, mold spores, and pet dander—capture rates for sub-5 micron particles drop to roughly 20-35%. If your goal is equipment protection over air quality, this filter excels. For households with allergy concerns, the MERV 8 options in this list are a better fit.
Why we love it
- Lowest resistance option for maximizing blower efficiency
- 6-pack value pricing for high-change-frequency scenarios
- Proven fit in Coleman and mobile home furnace tracks
Good to know
- Minimal particle capture below 5 microns—not for allergy households
- Actual size 0.31 inches smaller per dimension—verify your slot before buying
5. Filterbuy 16x20x1 MERV 8 Essential Defense 4-Pack
Filterbuy differentiates itself with industrial-grade build quality. The MERV 8 synthetic media is electrostatically charged and pleated at 14 pleats per foot—a density that captures 90% of dust and pollen without creating excessive resistance. But the real story is the construction: a beverage board frame with dual wire backing that prevents warping even when the filter is exposed to extreme attic temperatures or high humidity.
The actual dimensions of 15.50 x 19.50 x 0.75 inches are significantly smaller than the nominal 16x20x1 size, so this is not a universal fit. However, for systems that accept this exact profile, owners report “perfect fit for HVAC, no gaps” and “noticeably cleaner air, less dust.” The rigid structure also prevents the media from collapsing under heavy dust loading, maintaining consistent airflow throughout the 90-day service interval.
For homeowners in regions with high humidity or for systems that experience frequent on/off cycling, the reinforced frame holds up longer than standard cardboard alternatives. The 4-pack covers a full year on a 90-day schedule, and the US-based manufacturing with recyclable materials appeals to buyers prioritizing domestic sourcing.
Why we love it
- Dual wire backing prevents warping in humid or hot environments
- Electrostatic media captures 90% of particles without restricting flow
- Rigid beverage board frame withstands extreme temperature cycles
Good to know
- Actual dimensions significantly undersized—only fits specific 16×20 slots
- 14 pleats per foot creates slightly more resistance than low-pleat alternatives
FAQ
Does a higher MERV rating always mean worse airflow?
What is the difference between nominal size and actual size on a furnace filter?
Can I use a MERV 13 filter to get better air quality without harming airflow?
How do I know if my filter is restricting airflow too much?
Are washable filters better for airflow than disposable ones?
Final Thoughts: The Verdict
For most homeowners, the best furnace filter for air flow winner is the Nexiview MERV 8 Washable Filter because it eliminates replacement cost while maintaining open pleat geometry that minimizes resistance. If you prefer the performance consistency of a brand-name disposable filter, grab the Filtrete MPR 700 2-Pack for its proven 3M media balance. And for a system that needs the lowest possible restriction, nothing beats the Filtrete MERV 5 6-Pack for keeping your blower happy.
